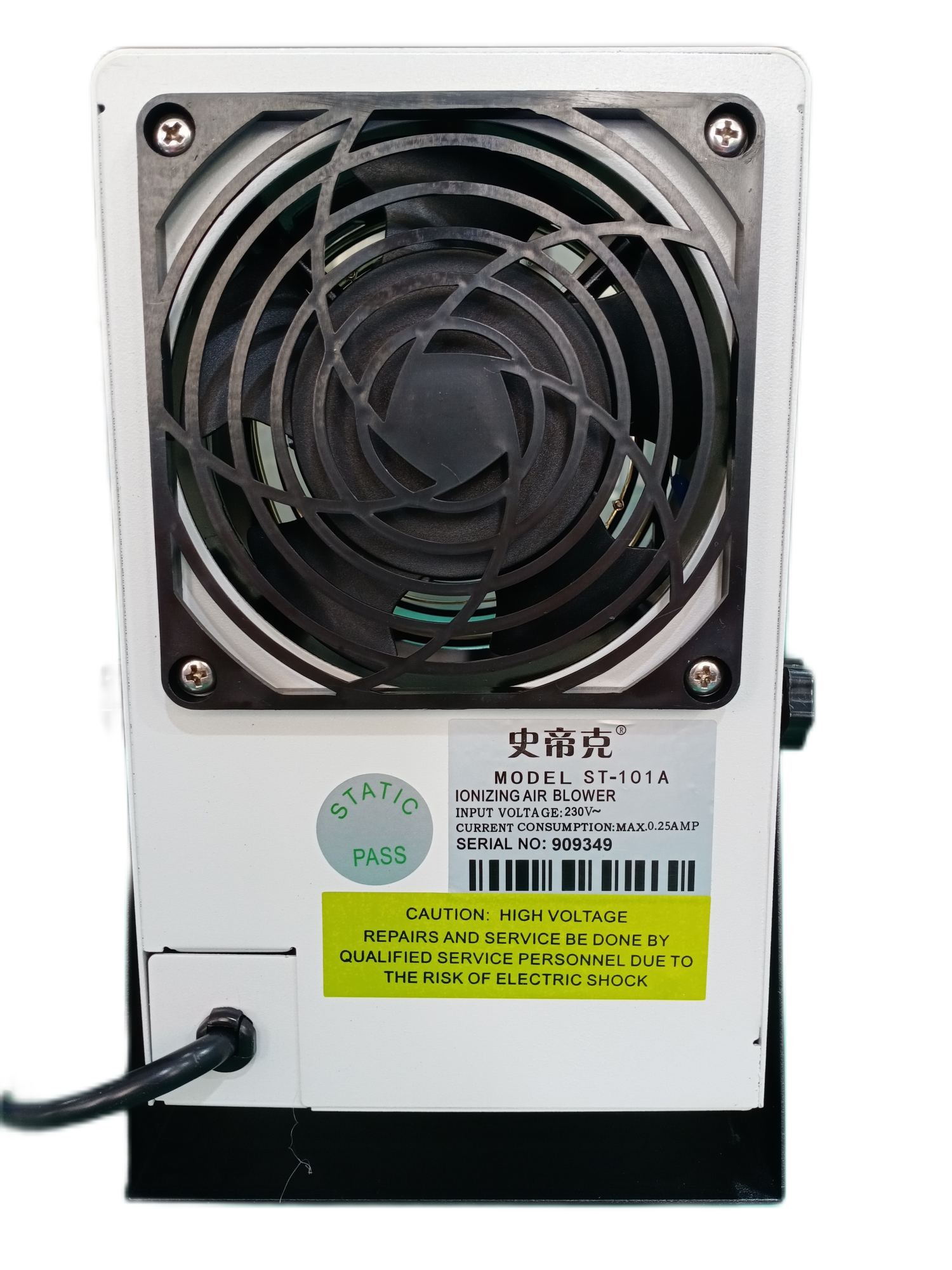

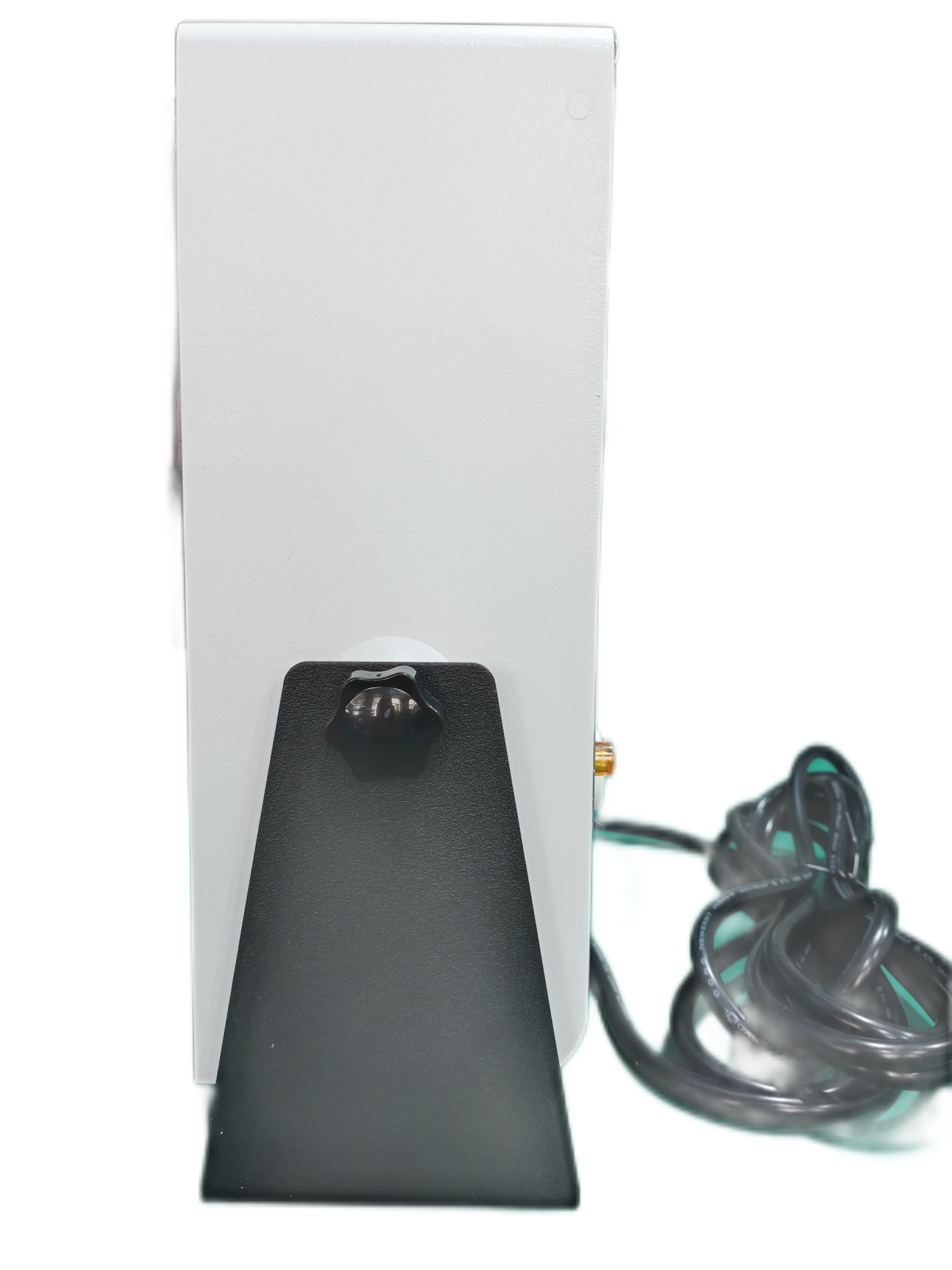

ST101A台式离子风机

ST101A台式离子风机,其按交流型静电消除器原理设计而成,属电子类。适用于小范围消除静电,方便移动、安装。可调节离子风量,内置高压发生器。

ST101A台式离子风机,其按交流型静电消除器原理设计而成,属电子类。适用于小范围消除静电,方便移动、安装。可调节离子风量,内置高压发生器。

技术参数:

工作电压

110V/60HZ 或 220V/50HZ

消耗电流

0.25A 或 0.12A

操作温度

-10~50℃

外型尺寸

90mm(长)×170mm(宽)×260mm(高)

重量

3.3Kg

风量

45~110CFM

离子平衡

0V±10V

气流面积

40cm×60cm

测试结果:

测试条件

测试电压:1KV-100V 操作电压:110/220V 环境温度:22℃ 测试湿度:75%RH

距离



300mm

600mm

900mm

中和时间

1.2s

2.5s

3.9s

1.3s

2.6s

4.1s

残余电压

8V

5V

4V

-7V

-6V

-3V



ST101A TABLE MODEL IONIZING AIR BLOWER

STATIC TABLE MODEL IONIZING AIR BLOWERIt is designed as the theory of alternating current electrostatic eliminator, belongs to electrical category.Apply to eliminate electrostatic in a limited distance, convenient to remove and install.The ionizing air volume can be adjusted, including high voltage generator.

Specification:

Operating Voltage

110V/60HZ OR 220V/50HZ

Current Consumption

0.25A OR 0.12A

Operating Temperature

-10~50℃

Size

90mm(L)×170mm(W)×260mm(H)

Weight

3.3Kg

Air Volume

45~110CFM

Ion Balance

0V±10V

Air Coverage

40cm×60cm

Decay tdst Results:

Testing Conditions

Test voltage:1KV-100V Operating Voltage:110/220V Temperature:22℃ Test Humidity:75%RH

Distance



300mm

600mm

900mm

Decay time

Positive

1.2s

2.5s

3.9s

Negative

1.3s

2.6s

4.1s

Offset voltage

Positive

8V

5V

4V

Negative

-7V

-6V

-3V
